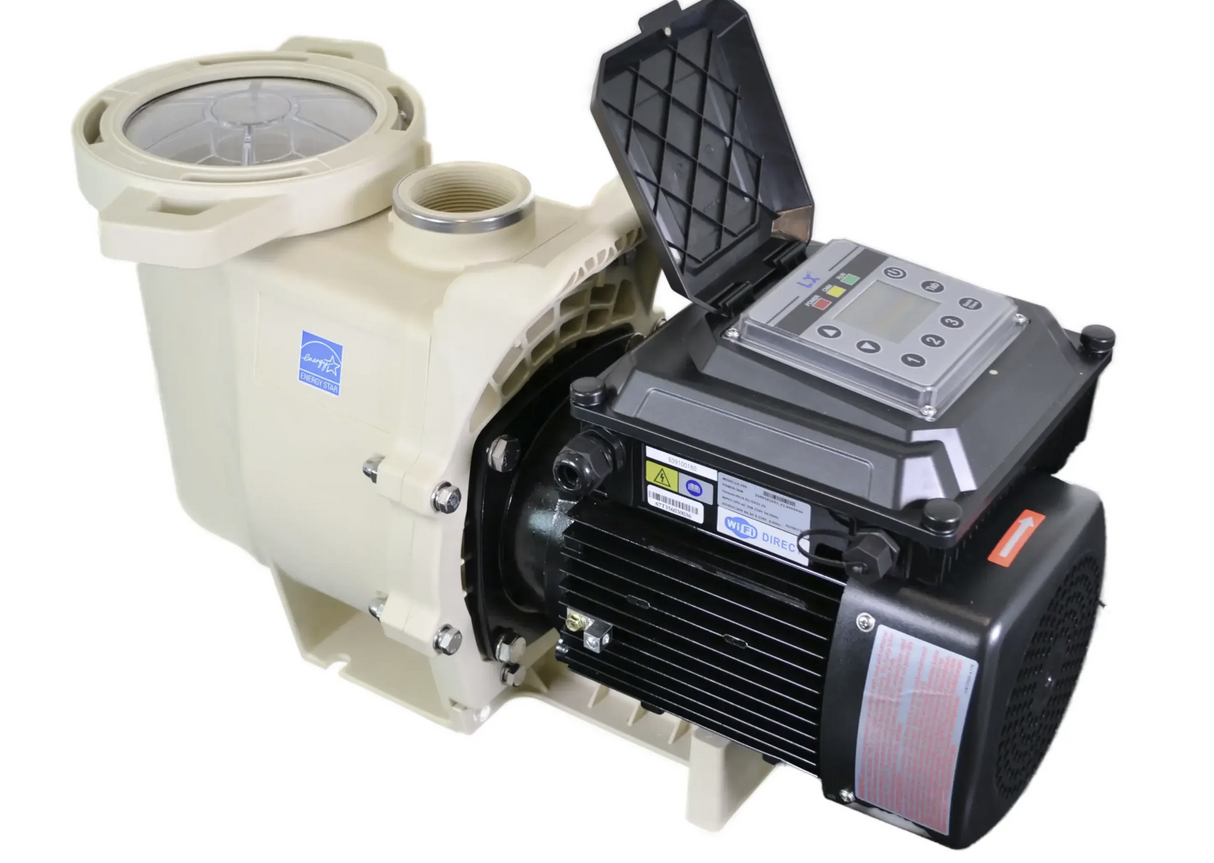

ProAqua Kraken 3.5 HP variable-speed pool pump – PA-VSP390

The ProAqua Kraken PA-VSP390 is a 3.5 THP variable-speed pump designed for in-ground pools requiring powerful, quiet, and energy-efficient circulation.

Operating on a 230 V power supply, it allows you to program filtration cycles and adjust the motor speed to meet the pool's different needs. Its low-speed operation helps reduce electricity consumption, noise, and system wear.

Its high power is particularly suitable for installations with long plumbing circuits, multiple pieces of equipment, or significant circulation needs.

Variable-speed technology

Unlike a single-speed pump that always operates at full power, the Kraken allows you to adjust its speed according to usage.

It can notably be programmed for:

• Daily low-speed filtration
• Water heater operation
• Pool cleaning
• Periods of intensive circulation
• Powering certain water features
• System priming and startup

A speed suited to each task promotes efficient circulation while limiting unnecessary electricity consumption.

Filtration cycle programming

The control panel allows you to customize the pump's operating periods and speeds.

This programming offers several advantages:

• Circulation adapted to actual needs
• Reduced operating costs
• More consistent filtration
• Automatic operation according to the selected schedule
• Reduced wear caused by continuous operation at full speed

Actual energy savings vary depending on the programming, operating time, plumbing, and installed equipment.

Quiet operation

At low speed, the pump can operate at a noise level of approximately 42 dB, depending on the installation conditions.

Reducing the speed helps decrease:

• Motor noise
• Vibrations
• Pressure on the plumbing
• Electricity consumption
• General system wear

High circulation capacity

With a total power of 3.5 THP, the Kraken PA-VSP390 is suitable for installations requiring greater flow and pressure.

It is an attractive option for:

• Residential in-ground pools
• Systems with multiple water returns
• Installations with a water heater
• Longer plumbing circuits
• Equipment requiring high flow
• Replacing a high-powered pump

Sizing must always be validated based on the filter, plumbing, and pool equipment.

Simplified installation and maintenance

The Kraken is compatible with 1.5- or 2-inch plumbing. 1.5-inch adapters are included to facilitate integration with different installations.

It also includes:

• A self-priming design
• A large-capacity strainer basket
• A transparent lid
• An integrated handle
• Fittings compatible with common standards
• Easy basket access for maintenance

The transparent lid lets you quickly check for debris buildup without opening the strainer.

Key features

• Programmable variable-speed pump
• Total power of 3.5 THP
• Designed for inground pools
• 230 V/60 Hz power supply
• 16 A motor
• Energy factor of 7.262 WEF
• Maximum flow rate of up to 180 GPM
• Operation starting at approximately 42 dB
• Compatible with 1.5- and 2-inch plumbing
• 1.5-inch adapters included
• Self-priming pump
• Large-capacity strainer basket
• Transparent lid
• Operating cycle programming
• Energy Star 3.1, DOE, and CEC certifications
• 2-year limited warranty

Technical specifications

Compatibility and sizing

This pump is suitable for residential inground pool installations using a 230 V power supply.

Before purchasing, it is recommended to check:

• The filter’s maximum accepted flow rate
• The plumbing diameter
• The heater capacity
• The return and suction configuration
• The power of the replaced pump
• The installation’s electrical requirements

A pump that is too powerful for the filter or plumbing can impair system performance. Professional verification is recommended.

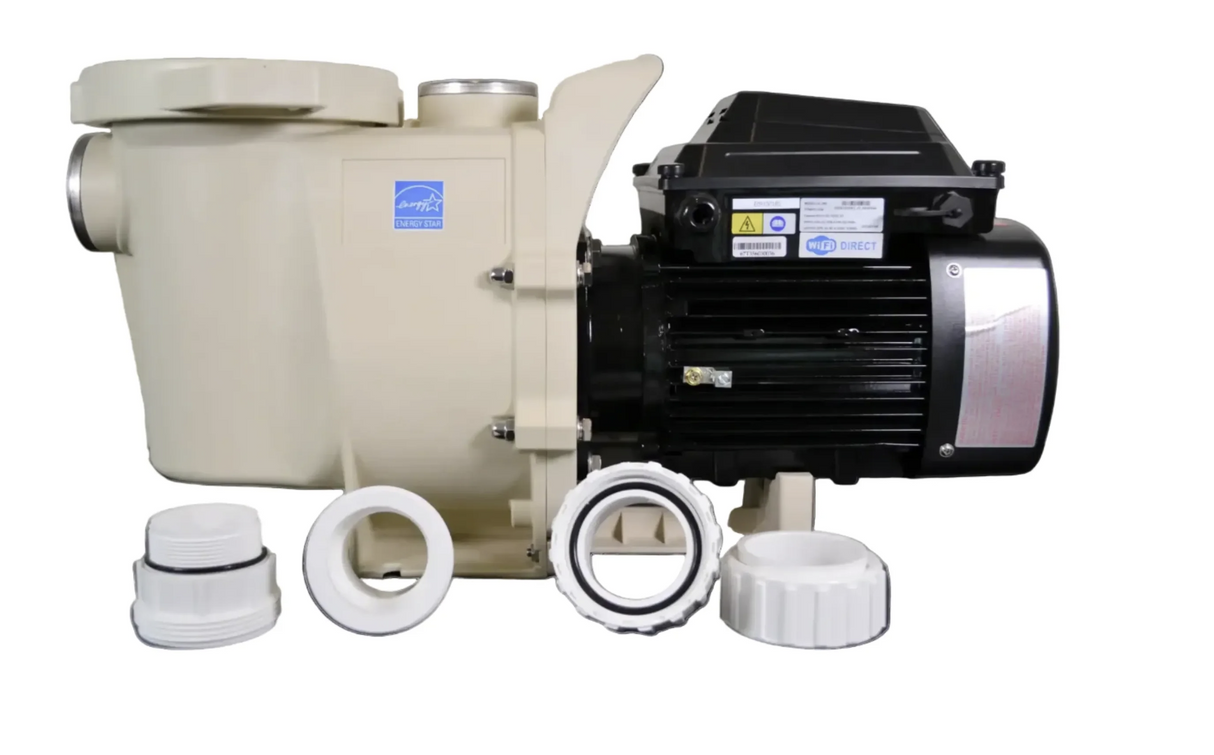

Package contents

• 1 ProAqua Kraken PA-VSP390 variable-speed pump
• 2-inch fittings
• 1.5-inch adapters

Additional fittings, electrical cables, and installation accessories are sold separately unless otherwise indicated.

A powerful, energy-efficient pump

The ProAqua Kraken PA-VSP390 combines 3.5 THP of power, flexible programming, and quiet operation.

It is an excellent solution for modernizing the filtration system of a large inground pool or replacing an energy-hungry single-speed pump.

Available from Piscine Hippocampe.
